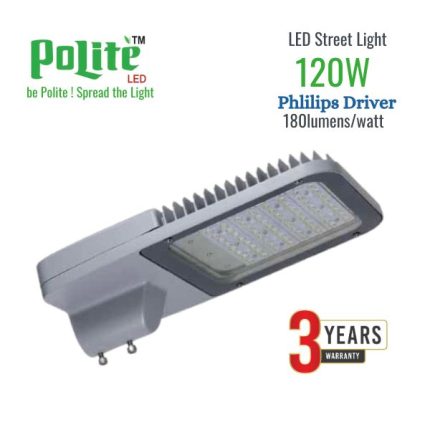

Street Lighting

Warranty period 3 years 2 year all parts replacement 1 year free maintenance, Luminous Flux 20,000 lm Correlated Color Temperature (Nom) 4000 K, 3000k, 6500k Luminous Efficacy (rated) (Nom) 170 lm/W Color rendering index (CRI) >70 Light source color 740 neutral white Effective projected area 0.16 m² Operating and Electrical Input Voltage 220 to 240 V Line Frequency 50 or 60 Hz Power Consumption 120 W Power Factor (Fraction) 0.9 Cable - Protection class IEC Safety class I Controls and Dimming Dimmable = Yes Driver/power unit/transformer Power supply unit regulating Control interface Analog Constant light output = No Maximum dim level = 10% Mechanical and Housing Housing Material = Aluminum die cast Optic material = Polycarbonate Optical cover material = Glass Fixation material = Aluminum Housing Color = Grey Overall length = 499 mm Overall width = 310 mm Overall height = 138 mm Dimensions (Height x Width x Depth) 138 x 310 x 499 mm Ingress protection code IP66 [Dust penetration-protected, jet-proof] Mech. impact protection code IK08 [5 J vandal-protected] Optical cover type Polycarbonate micro lens optic Net Weight (Piece) 7.000 kg Ambient temperature range -40 to +50 °C Initial Performance (IEC Compliant) Luminous flux tolerance +/-10% Initial chromaticity (0.43, 0.40) SDCM < 5 Power consumption tolerance +/-10% Over Time Performance (IEC Compliant) Median useful life L70B50 100,000 hour(s) Product Data Product name BRP382 LED170/NW 120W 220-240V MADE = Made in China Assamble in Polite led Pvt Ltd, industry Pakistan.
